open PLC Editor LD POU Blink

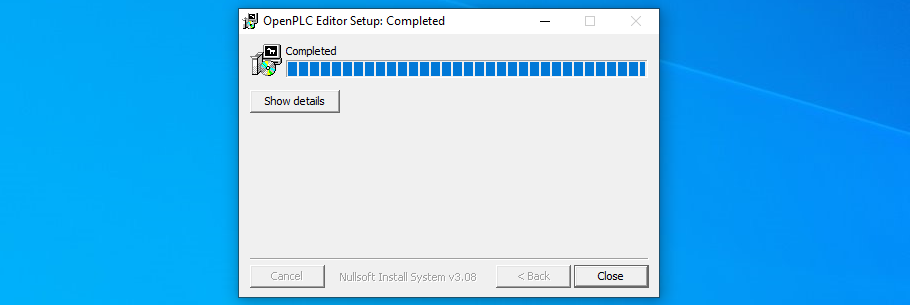

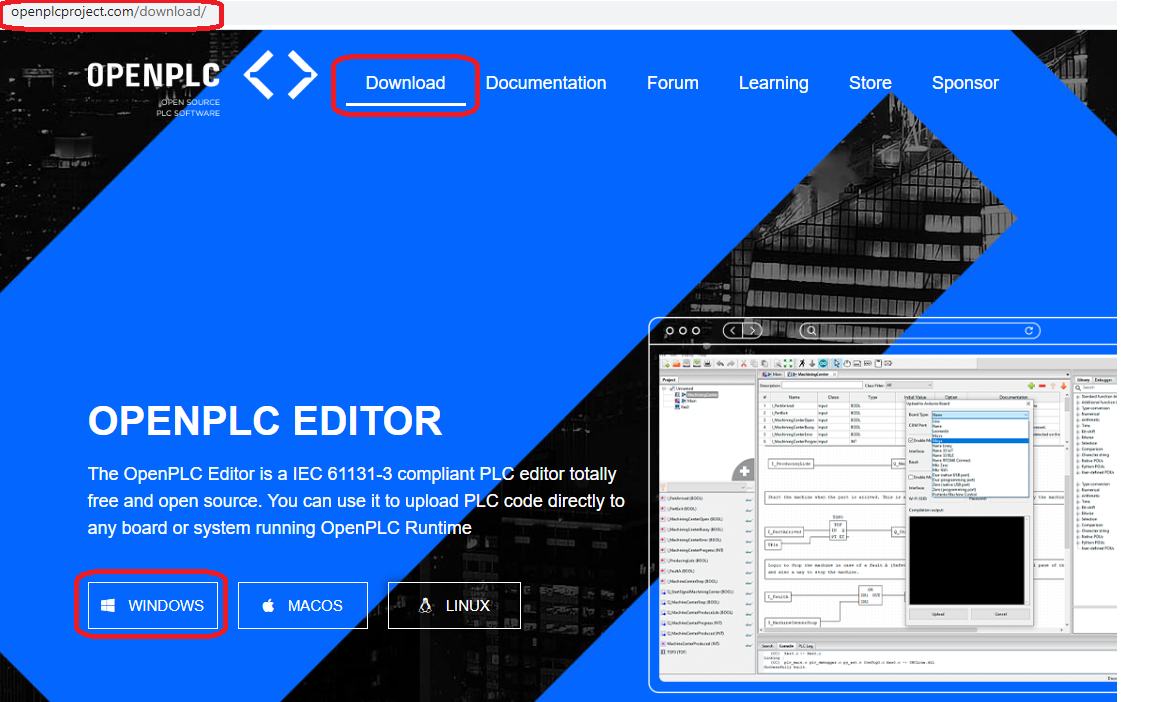

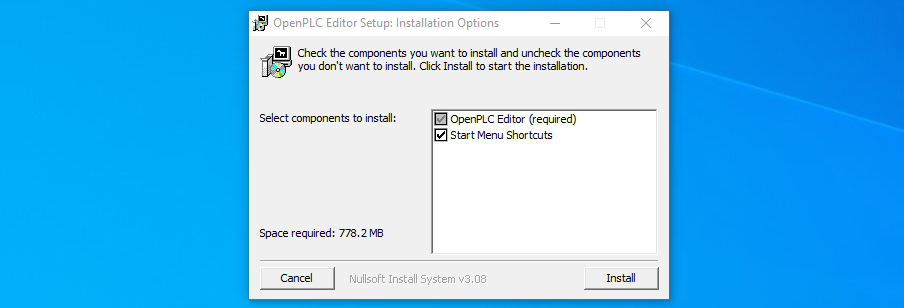

1. Install open PLC Editor (Windows)

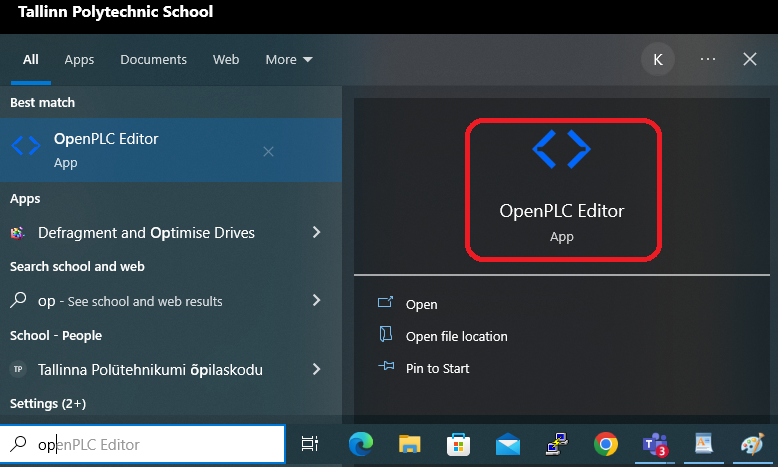

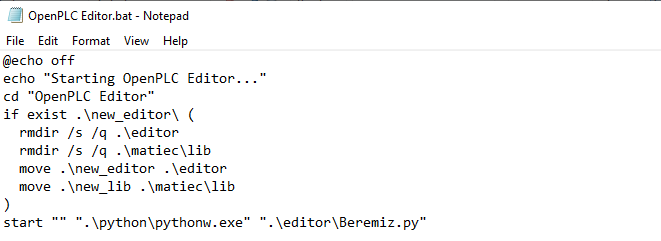

   If you are curious about the program Location select "Open file location":

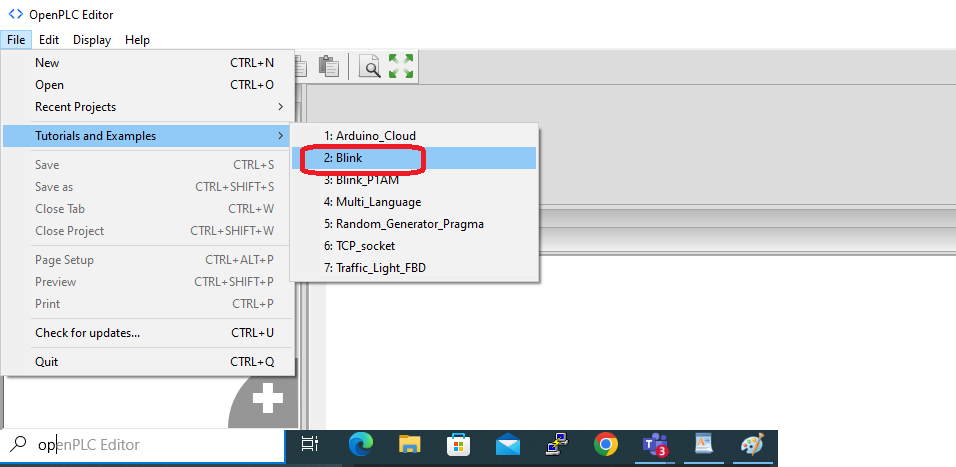

2. Select "Blink example" with open PLC editor:

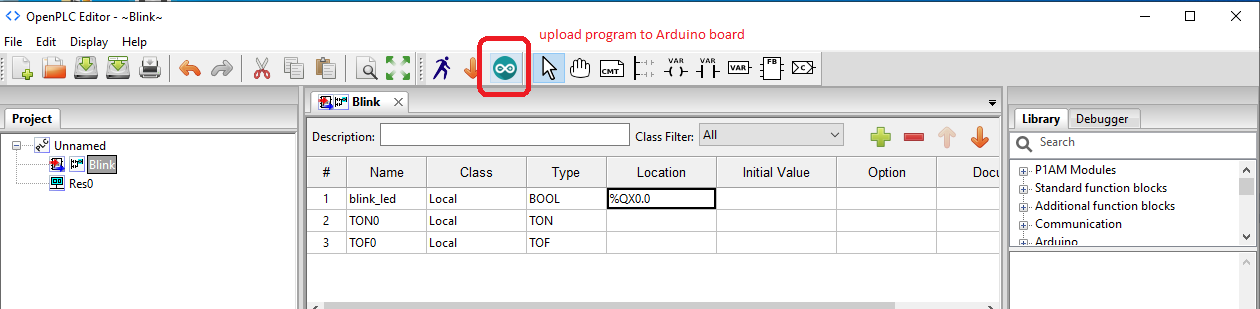

3. Open Blink Ladder and set LED location as %QX0.0

   Some "Locations" for Arduino Boards

   # Uno, Leonardo, Nano, Micro, Zero

   Digital In   2, 3, 4, 5, 6                  %IX0.0-%IX0.4
   Digital Out  7, 8, 12, 13                   %QX0.0-%QX0.3
   Analog In    A0, A1, A2, A3, A4, A5         %IW0-%IW5
   Analog Out   9, 10, 11                      %QW0-%QW2

   # Mega / Due

   Digital In  62, 63, 64, 65, 66, 67, 68, 69  %IX0.0-%IX0.7
               22, 24, 26, 28, 30, 32, 34, 36  %IX1.0-%IX1.7
               38, 40, 42, 44, 46, 48, 50, 52  %IX2.0-%IX2.7
   Digital Out 14, 15, 16, 17, 18, 19, 20, 21  %QX0.0-%QX0.7
               23, 25, 27, 29, 31, 33, 35, 37  %QX1.0-%QX1.7
               39, 41, 43, 45, 47, 49, 51, 53  %QX2.0-%QX2.7
   Analog In   A0, A1, A2, A3, A4, A5, A6, A7  %IW0-%IW7
   Analog Out  2, 3, 4, 5, 6, 7, 8, 9          %QW0-%QW7
               10, 11, 12, 13                  %QW8-%QW11

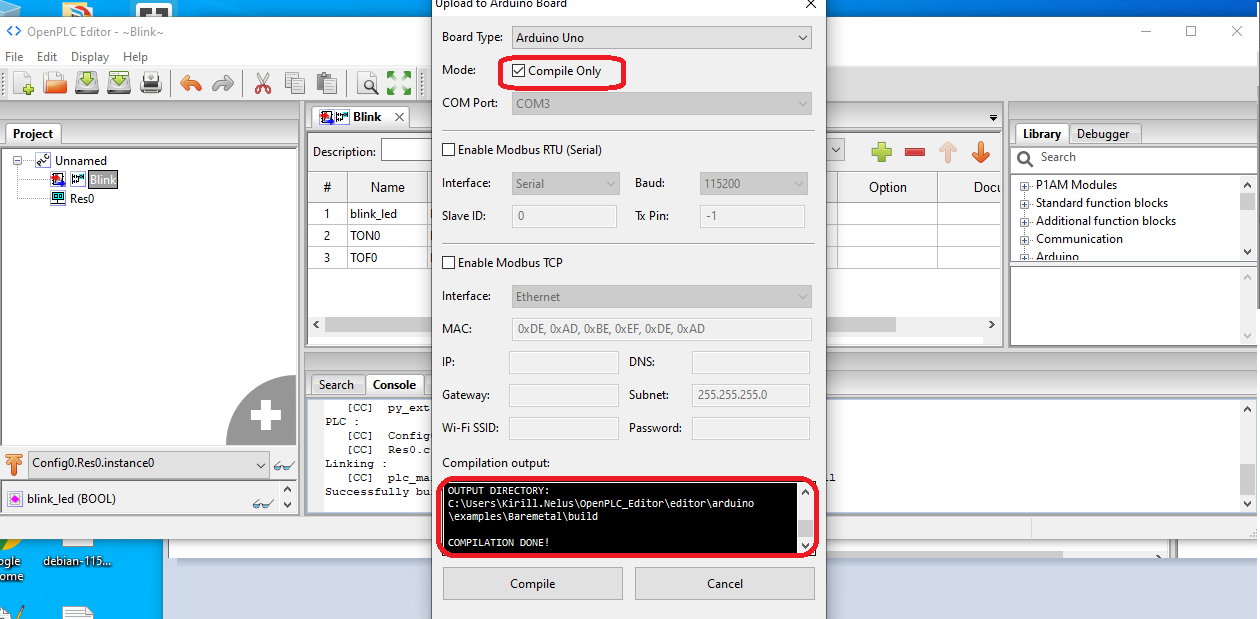

4. Build firmware for Arduino Uno:





Our firmware is here:

C:\Users\Kirill.Nelus\OpenPLC_Editor\editor\arduino\examples\
   Baremetal\build\arduino.avr.uno\Baremetal.ino.hex

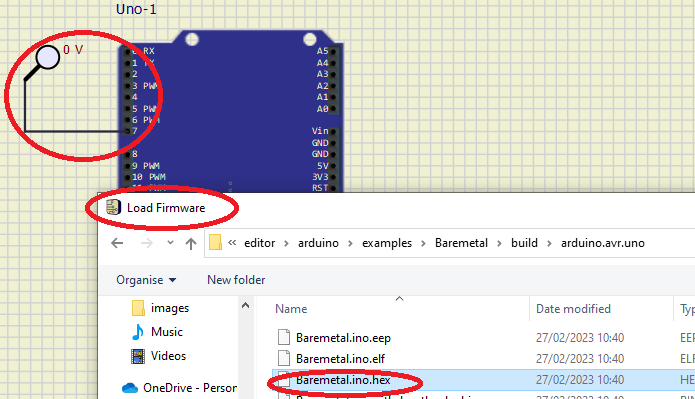

5. Upload firmware to SimulIDE:

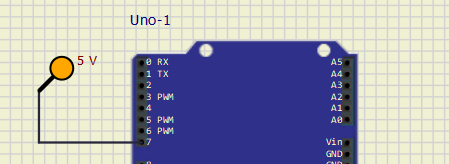

6. Run Simulation:

   Lamp is blinking with 0.5s interval



All done!
